Brief Description of the Work undertaken by BEC Group

Construction of 132/33KV Grid Station at Rusail

Design, Engineering, Manufacture, Inspection, Shop Testing, Delivery, Transportation, Storage at Site, Erection, Testing, Commissioning, and handing over the 132kV Grid Station and Associated 132kV Feeder works

Salient Features

• Construction of 132kV GIS with Basement
• Construction of Control Building including Telecom Room, LVAC Room, Battery Room, Office Room and Store Room
• Building MEP Services including HVAC
• CCTV & Access Control System

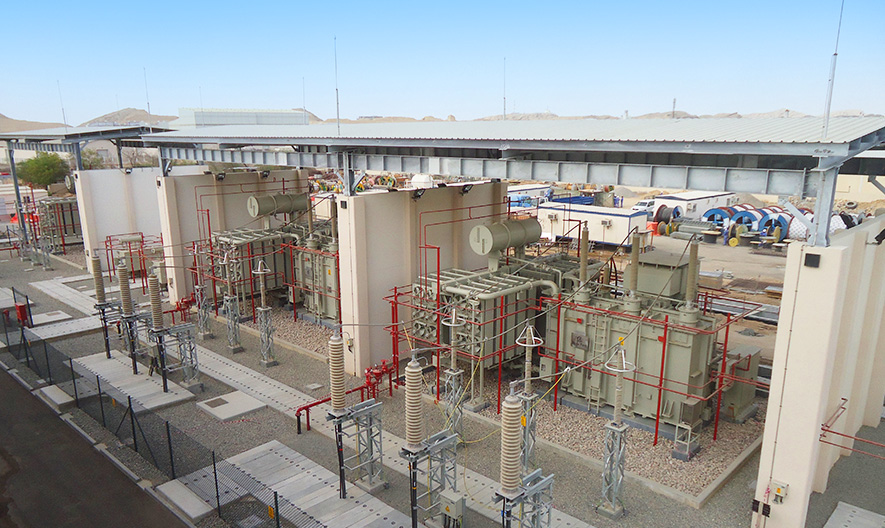

• 125MVA, 132/33kV Power Transformer -4 Nos (BBL, India)
• 500kVA, 33/0.415kV Earthing Axillary Transformer-4 Nos (Voltamp, Oman)
• 33kV Neutral Earthing Resister - 4 Nos (National Switch Gear, India)

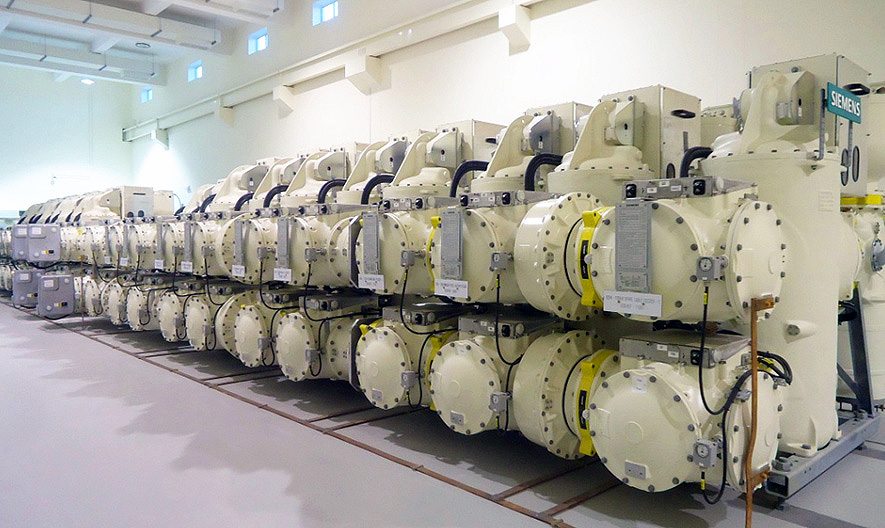

• 132kV Gas Insulated Switchgear – 19 Bays (Siemens, Germany)
• Control & Relay Panels (ETA-PCS, UAE)
• Telecommunication System (ABB, Sweden)
• Substation Automation System (GE, Spain)
• 132kV, 1C x 2500Sq.mm & 1Cx 800Sqmm (ILJIN, Korea)
• 110V & 48V DC System (Statron, Switzerland & SAB, Sweden)
• LVAC System (Voltamp, Oman)
• 132kV Surge Arrestor – 12 Nos (Siemens, Germany)
