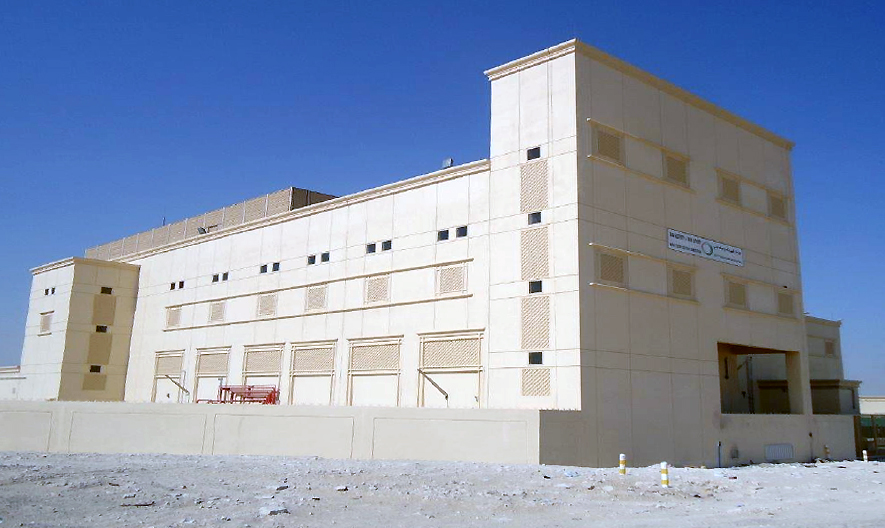

132k132 11kV SUBSTATION AT TECHNOPARK

Client :
JABEL ALI FREE ZONE AUTHORITY (JAFZA)
Location:
Oman
Sector:
Infrastructure
Services:
Electrical & Instrumentation ,



Brief Description of the Work undertaken by BEC Group

The design, Supply, Construction, Testing, commissioning, & completion including the remedying of all defects complying with latest specifications of DEWA for 132/11kV Hightech substation at TECHNOPARK.



Salient Features

Design, Supply, Installation and Testing & Commissioning of following major Equipment-

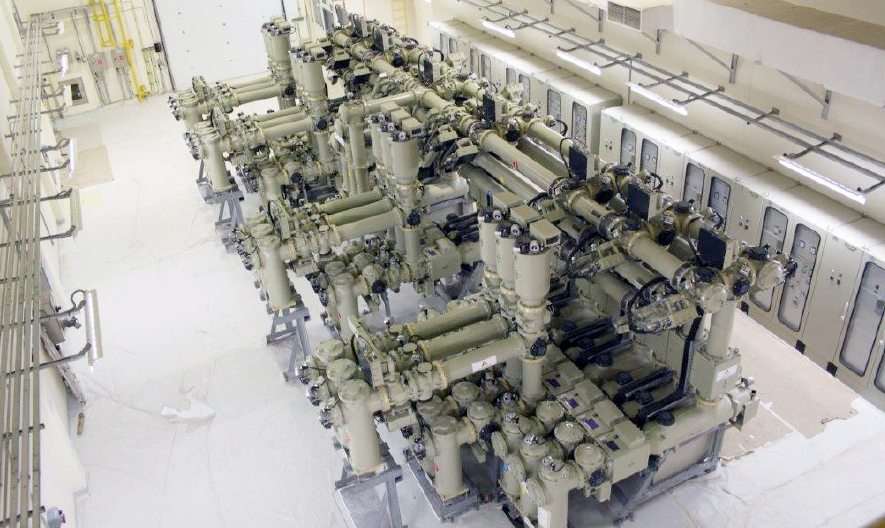

  • 132kV GIS-8 BAYS including 3 IDTs, 2 Line feeders, 1 Bus coupler and 2 spare line feeder bays
  • 132/12kV, 50MVA IDTs-3 nos.
  • 11kV Switchgears with 3 Incomers, 6 Capacitor feeders, 2 Bus section panels, 12 Outgoing feeders with metering & 45 outgoing feeders without metering
  • 500kVA Earthing Transformers-3 nos.
  • 12kV, 6 MVAr capacitor banks-6 nos.
  • Protection & Relay panels
  • Telecom Panel

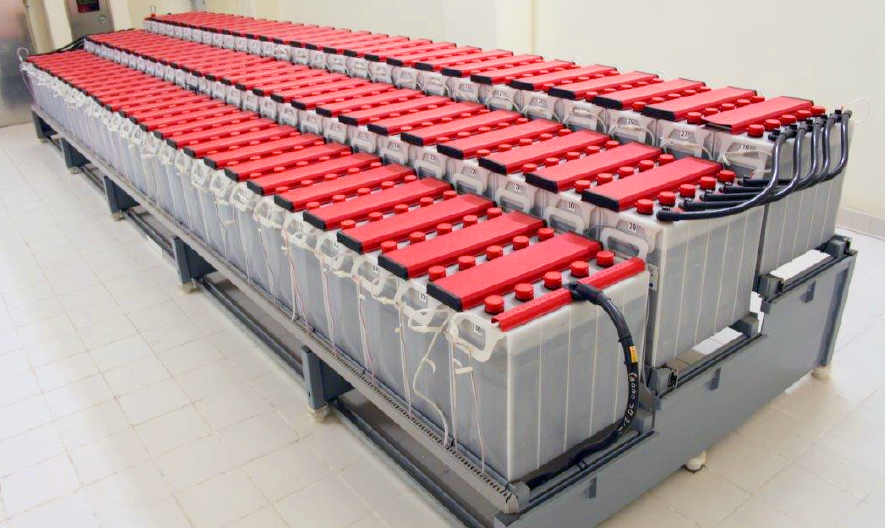

  • 110V Station & EL DC system
  • 48V DC system for SCADA

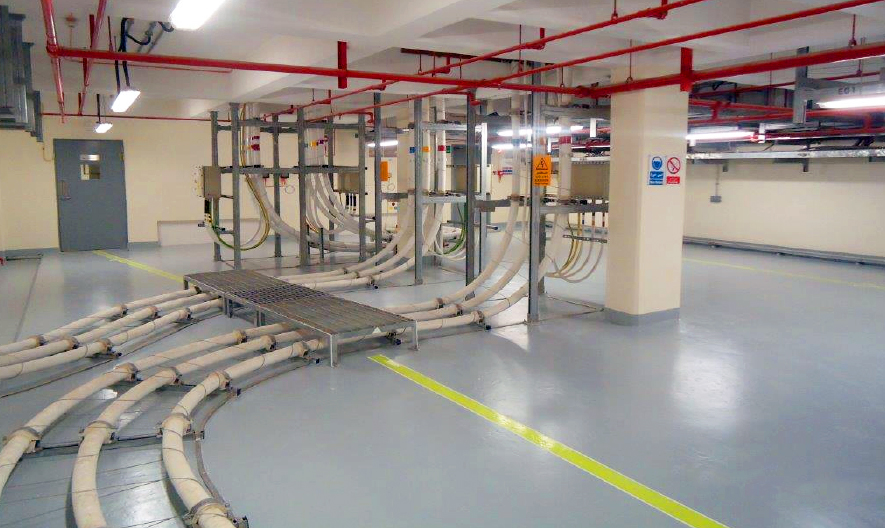

  • 47 kM LV/MV/HV Cable laying
  • LSP & HVAC works
