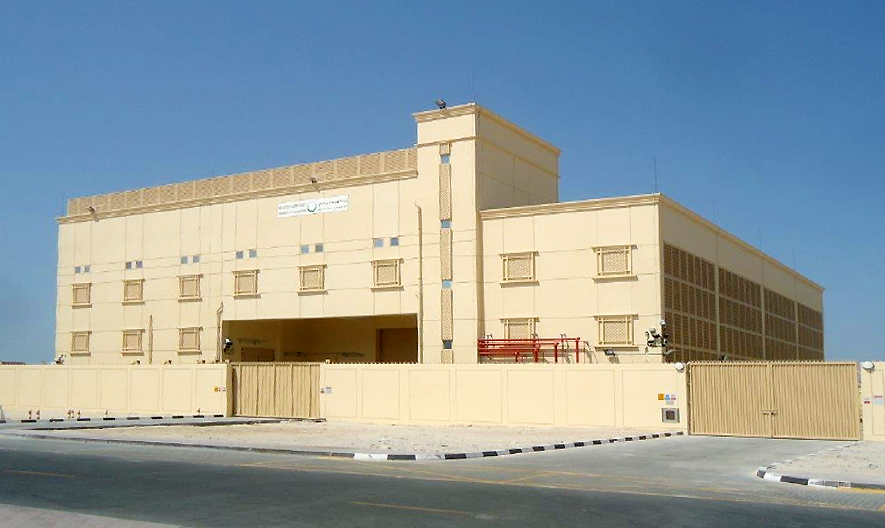

KHAZAN 132/11kV SUBSTATION

Client :
MERAAS DEVELOPMENT LLC
Location:
Oman
Sector:
Infrastructure
Services:
Electrical & Instrumentation ,



Brief Description of the Work undertaken by BEC Group

The design, Supply, Construction, Testing, commissioning & completion including the remedying of all defects complying with latest specifications of DEWA for 132/11kV KHAZAN substation at Citywalk Development.



Salient Features
Design, Supply, Installation and Testing & Commissioning of following major Equipment-

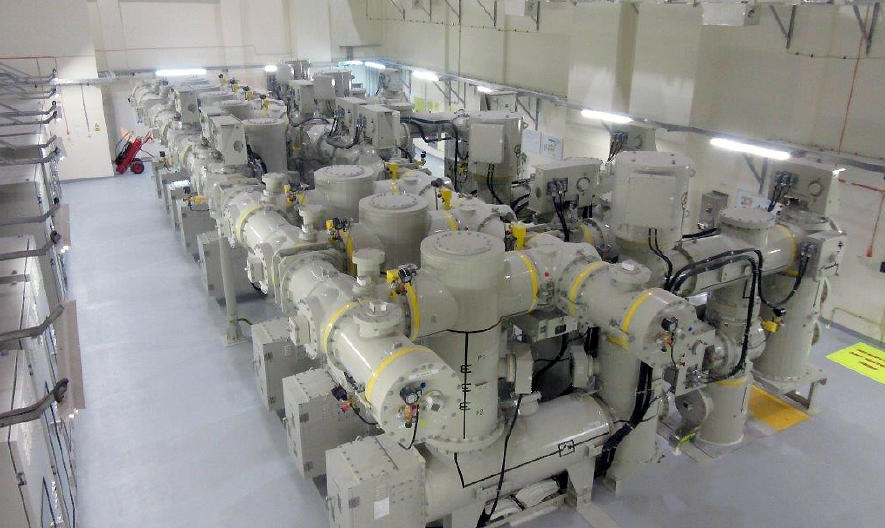

•    132kV GIS-8 BAYS including 3 IDTs, 2 Line feeders with one reactor, 1 Bus coupler and 2 spare line feeder bays

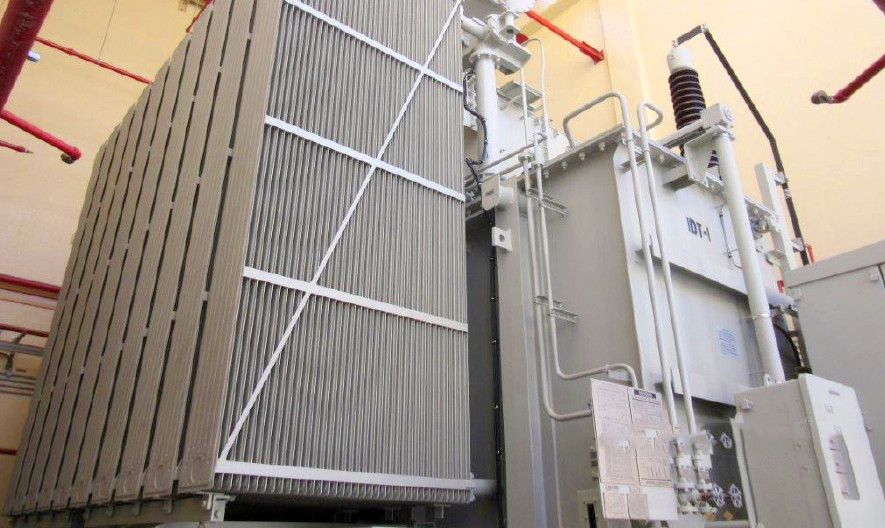

•    132/12kV, 50MVA IDTs-3 nos.
•    132kV, 15MVAr Shunt Reactor-1 no.

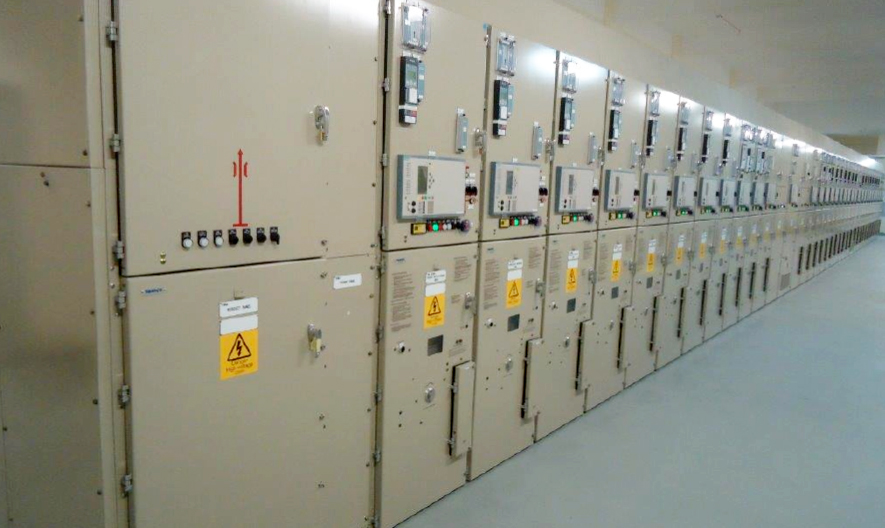

•    11kV Switchgears with 3 Incomers, 6 Capacitor feeders, 2 Bus section panels, 12 Outgoing feeders with metering &  45 outgoing feeders without metering
•    500kVA Earthing Transformers-3 nos.
•    12kV, 6 MVAr capacitor banks-6 nos.

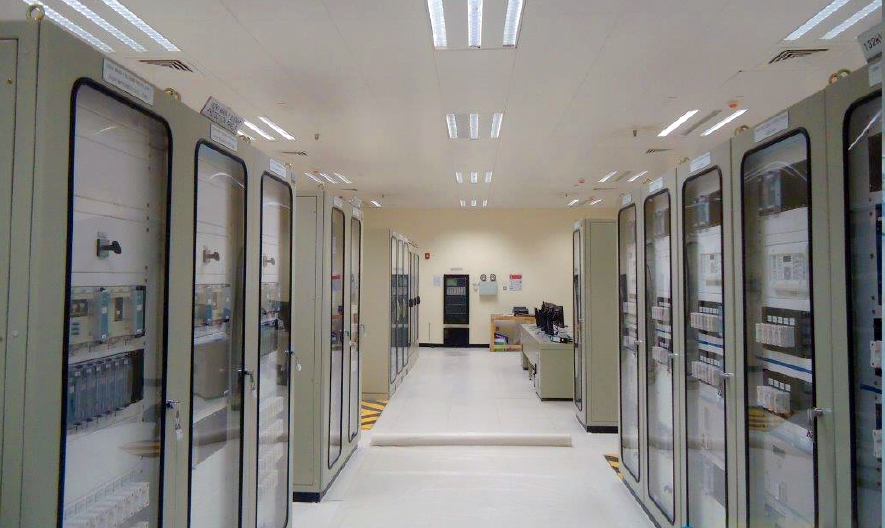

•    Protection & Relay panels
•    Telecom Panel
•    110V Station & EL DC system,
•    48V DC system for SCADA
•    52 kM LV/MV/HV Cable laying

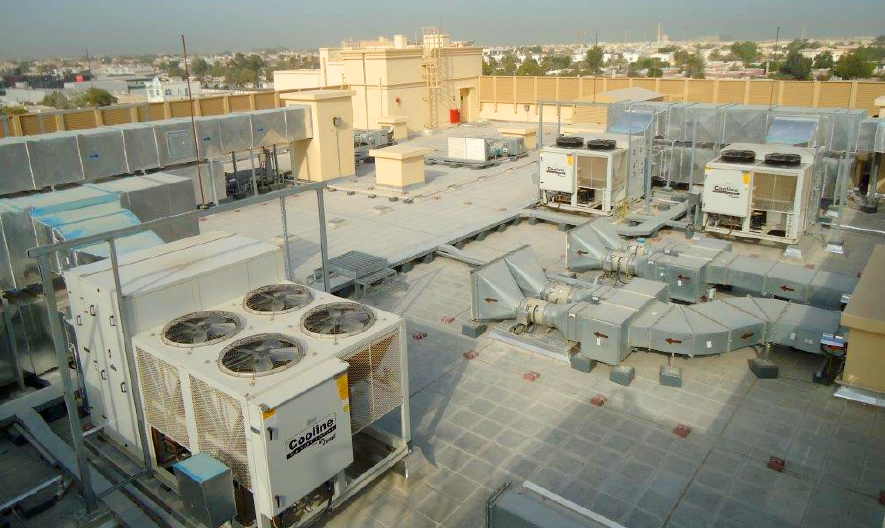

•    LSP & HVAC works

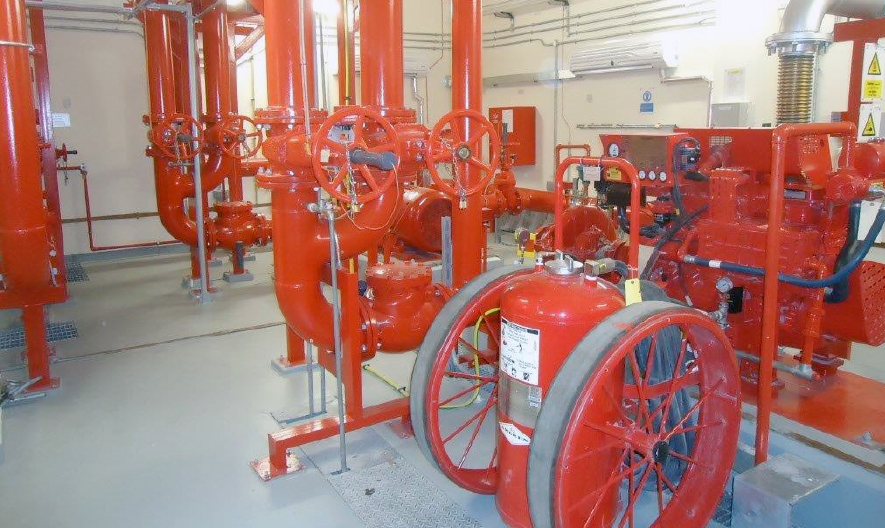

•    FPS System including Fire Alarm, Deluge & Nitrogen Gas suppression system
